HEAVY DUTY FRP Deck / Plank /Slab
Product Description
Uniform Load |
|||||
Span mm | 750 | 1000 | 1250 | 1500 | 1750 |
Deflection = L/200 | 3.75 | 5.00 | 6.25 | 7.50 | 8.75 |
Load kg/m2 | 4200 | 1800 | 920 | 510 | 320 |
Concentrated Line Load |
|||||
Span mm | 750 | 1000 | 1250 | 1500 | 1750 |
Deflection = L/200 | 3.75 | 5.00 | 6.25 | 7.50 | 8.75 |
Load kg/m2 | 1000 | 550 | 350 | 250 | 180 |
Note: The above data has been calculated from measurements made of the full section modulus - EN 13706, Annex D. |
FRP Decking is suitable as a cooling tower floor, for walkways, pedestrian bridge decks and odour control covers or to keep out water penetration in potable and waste water treatment units.
FRP Decking can be used in a number of other applications where its strength, light weight and easy of joining, no theft value, provide important benefits to our final clients.
No. |
Width(mm) |
Height(mm) |
Weight(g/m) |
Drawing |

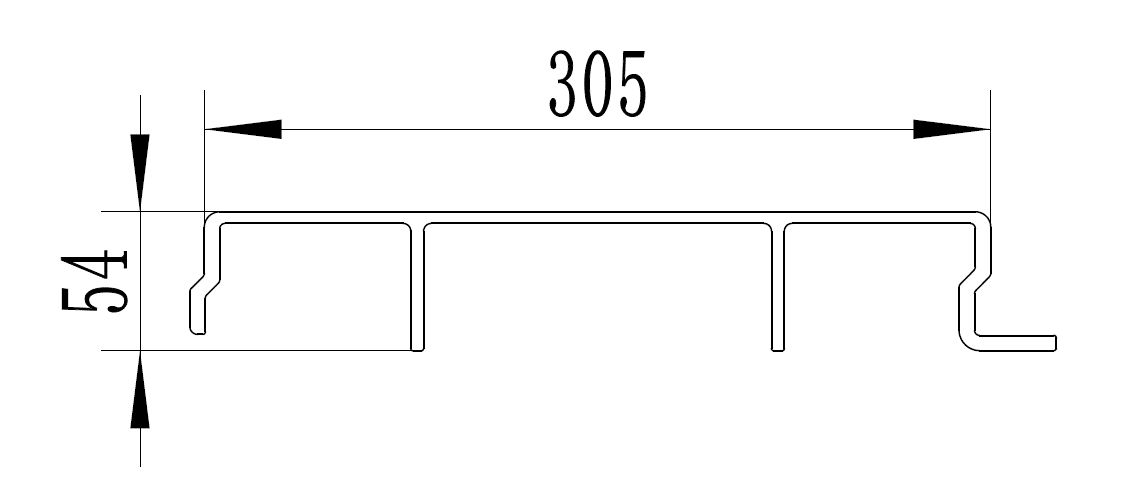

D305 |
305 |
54 |
5400 |
|

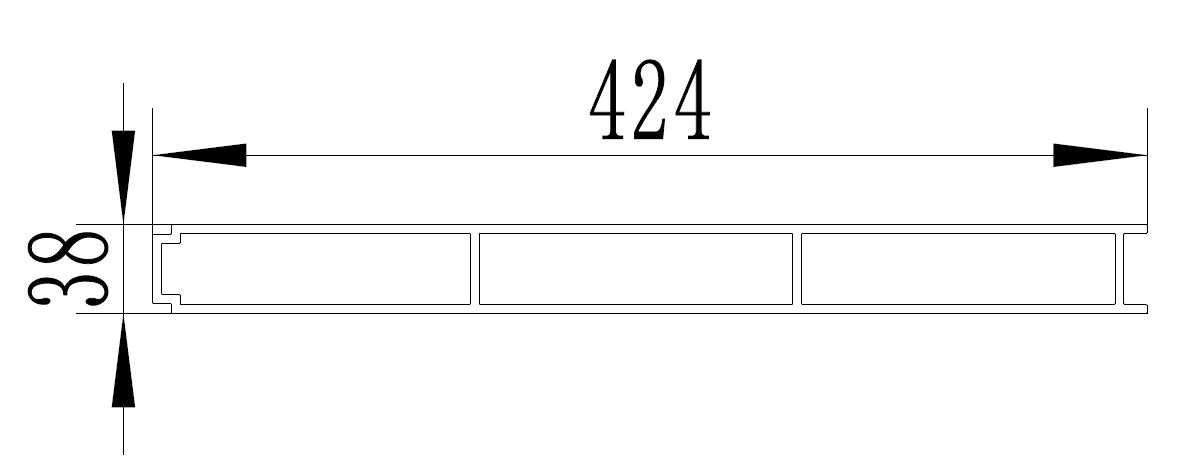

D424D |
424 |
38 |
7000 |
|

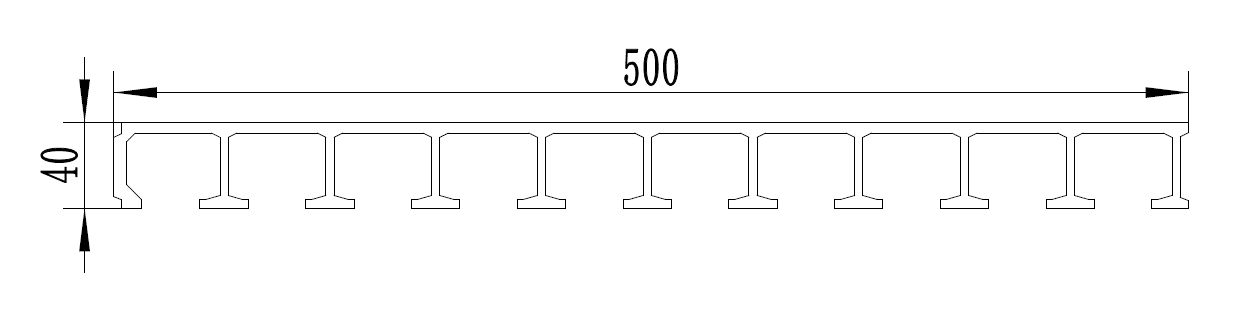

D500HD |
500 |
40 |
9450 |
|

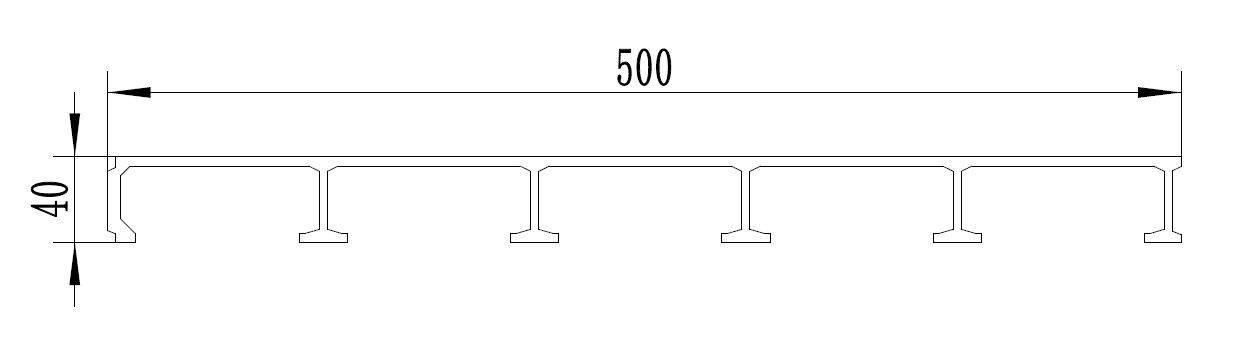

D500MD |
500 |
40 |
7300 |
D500HD Loading tech data
Deflection (mm) |
Concentrated Line Load (Kg) |
||||||||
150kg |
250kg |
350kg |
500kg |
600kg |
750kg |
1000kg |
L/200 |
L/100 |
|
Span(mm) |
|
|
|
|
|
|
|
Kg |
|
300 |
0.03 |
0.06 |
0.08 |
0.11 |
0.13 |
0.17 |
0.22 |
* |
* |
500 |
0.15 |
0.26 |
0.36 |
0.52 |
0.62 |
0.77 |
1.03 |
2421 |
4843 |
700 |
0.42 |
0.71 |
0.99 |
1.42 |
1.70 |
2.12 |
2.83 |
1235 |
2471 |
1000 |
1.24 |
2.06 |
2.89 |
4.13 |
4.96 |
|
|
605 |
1211 |
1200 |
2.14 |
3.57 |
5.00 |
7.14 |
|
|
|
420 |
841 |
1500 |
4.18 |
6.97 |
9.76 |
|
|
|
|
269 |
538 |
1700 |
6.09 |
10.15 |
|
|
|
|
|
209 |
419 |
2000 |
9.91 |
|
|
|
|
|
|
151 |
303 |
Deflection (mm) |
Uniform Load (Kg/M2) |
||||||||
150kg |
250kg |
350kg |
500kg |
600kg |
750kg |
1000kg |
L/200 |
L/100 |
|
Span(mm) |
|
|
|
|
|
|
|
Kg |
|
300 |
0.00 |
0.01 |
0.01 |
0.01 |
0.01 |
0.02 |
0.02 |
* |
* |
500 |
0.02 |
0.04 |
0.06 |
0.08 |
0.10 |
0.12 |
0.16 |
* |
* |
700 |
0.09 |
0.15 |
0.22 |
0.31 |
0.37 |
0.46 |
0.62 |
5647 |
* |
1000 |
0.39 |
0.65 |
0.90 |
1.29 |
1.55 |
1.94 |
2.58 |
1937 |
3874 |
1200 |
0.80 |
1.34 |
1.87 |
2.68 |
3.21 |
4.01 |
5.35 |
1121 |
2242 |
1500 |
1.96 |
3.27 |
4.57 |
6.53 |
|
|
|
574 |
1148 |
1700 |
3.23 |
5.39 |
7.55 |
|
|
|
|
394 |
789 |
2000 |
6.19 |
|
|
|
|
|
|
242 |
484 |
